High Power 2D Pulse Laser Cleaning Head (QYCLH-FPDH3)

Product Description

SDQY LASER's high-power 2D laser cleaning head is designed for industrial-grade efficient cleaning with ultra-wide format, intelligent control, and military-grade stability as the core. It is compatible with 500W and 1000w high-power top-hat/flat-top pulse fiber laser, allowing laser cleaning technology to truly unleash industrial potential.

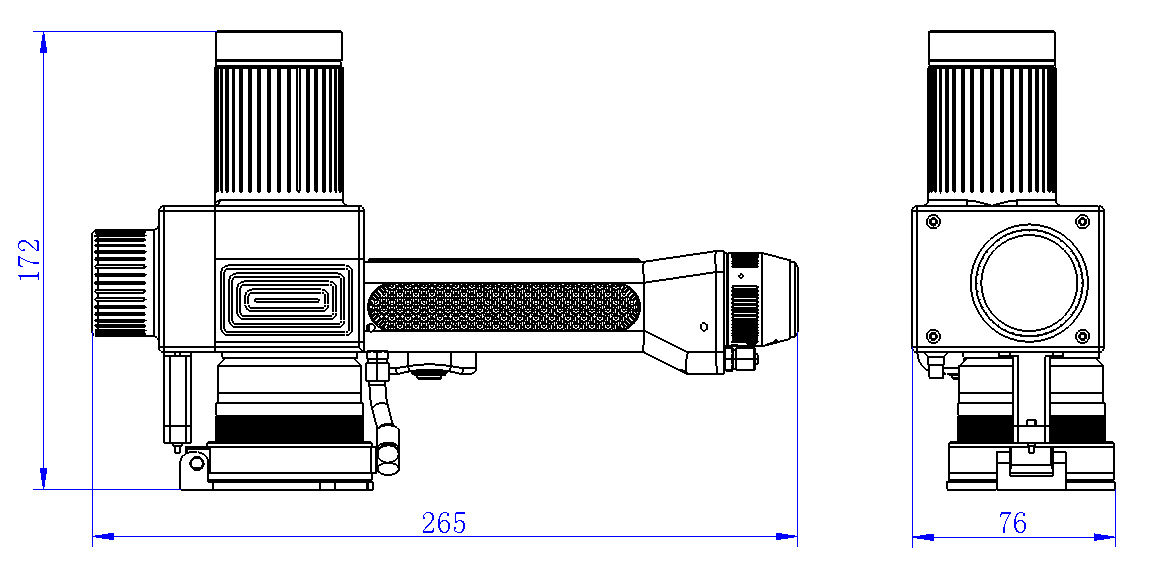

Product Structure

Product Features

1. Efficient power adaptation
Supports ≤1000W power output to meet the needs of industrial-grade high-precision cleaning.

2. Lightweight design
The weight of the whole machine is about 1200g, which is highly portable and suitable for integration into automated production lines or mobile equipment.

3. Flexible fiber interface
Compatible with various standard fiber interfaces such as QBH, adaptable to mainstream lasers, and highly expandable.

4. Intelligent cooling system
Water-cooled heat dissipation design ensures stability during long-term high-load operation and extends the life of the equipment.

5. Triple safety protection

• Anti-mistouch design: Physical protection of the field mirror flip cover, the flip switch + handle button must be triggered at the same time to emit light.
• Air curtain dustproof: The circular air curtain forms a ring-shaped closed air curtain to isolate external smoke and dust and protect the lens from being clean.
• Temperature monitoring: Real-time detection of chamber temperature, and display on the knob screen to prevent overheating risks.

6. Precision focusing system
Dual red light focusing technology, by adjusting the angles of the two laser beams to make them overlap at the focal length, improves processing accuracy.

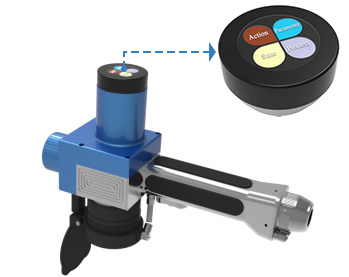

7. Humanized operation interface, integrated control with knob screen

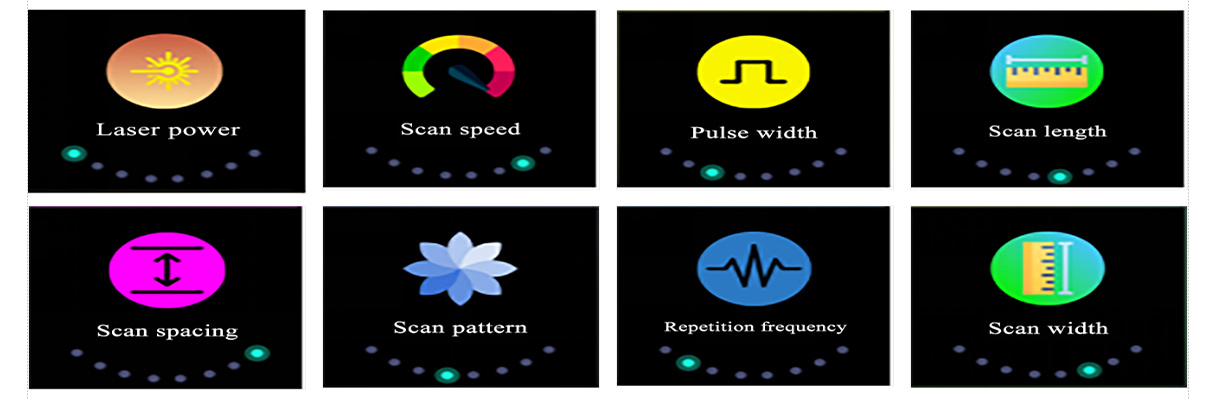

• 8 laser parameters can be adjusted (such as power, frequency, pulse width, etc.).
• 6 common cleaning processes are preset and can be switched with one button.

8. Industrial-grade durable design
High protection level, adaptable to complex environments such as dust and high temperature, ensuring long-term stable operation.

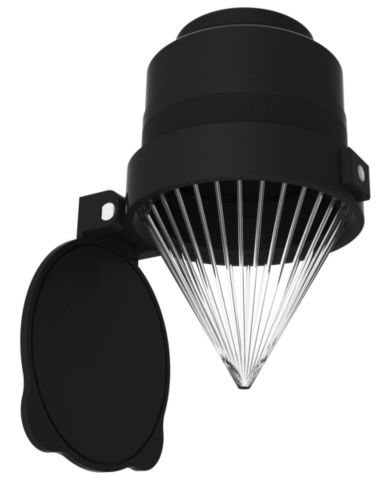

Round Air Curtain

Product Parameters

Product Advantages

Safety (multiple protections) + Precision (dual red light focusing) + Ease of use (knob screen control) + Reliability (water cooling & temperature control), meeting the needs of high-demand industrial processing scenarios.

Application Scenarios

• Precision machining: semiconductors and electronic components, precision machinery.
• Industrial manufacturing: mold cleaning, welding pre-treatment/post-treatment, rail transportation.
• Cultural heritage and high-end surface treatment: cultural relics restoration, high-end coating treatment.
• New energy and automobiles: battery manufacturing, electric vehicle motors.
• Shipping and aerospace: hull maintenance, aircraft skin treatment.
