50w 100w Backpack Pulsed Laser Cleaning Machine

Product Description

With battery, only 14/16KG, good for outdoor rust, coating, dirt removal! It comes with 50w/100w Pulse fiber laser source. When aimed at the metal surface, the dirt layer and any oxides underneath will absorb the energy and evaporate, along with thermal pressure and shock waves to sublimate the rust and separates it from the metal without damaging the piece.

Specification

Model	QYCL-FP50C	QYCL-FP100C
Laser power (w)	50	100
Single pulse energy (mj)	1.1	1.6
Weight of hand-held head (kg)	1
Rated power (kw)	0.5	0.6
Power adjustment range (%)	10-100
Width of scanning (mm)	100*100
Focal length (mm)	100/160/260
Central wavelength (nm)	1060~1070
Cooling method	Air Cooling
Fiber length (m)	3
Type of laser source	Pulsed fiber laser
Battery	Lithium battery(24V 25Ah)
Battery life	2.8	1.6
Dimension of machine (mm)	260190415
Weight of machine (kg)	14±0.5	16±0.5
Power supply	220V

Product Details

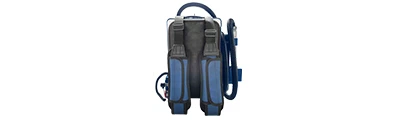

	Backpack structure design Small size, light, easy to carry, battery /external power supply two modes can be selected freely, it's not only suitable for small spaces, high altitude, field operations, etc., but also suitable for factory workshop operations.
02 Non-Contact Cleaning Laser cleaning operates without physical contact, preventing wear and tear during the cleaning process. This feature is especially advantageous for maintaining high precision on the object's surface.
	03 Energy-Efficiency and Environmental Friendliness Laser beam focus is meticulously controlled,enabling the targeted removal of contaminants from specific areas while leaving surrounding regions unaffected.
04 Versatility Across Materials Laser cleaning applications span various materials, showcasing remarkable adaptability.

Features

1) Backpack systel, supply with battery, compact structure and light weight, suitable for outdoor cleaning.

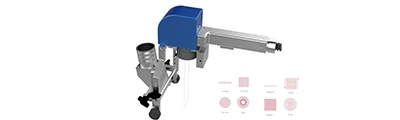

2) Hand-held operation, light scanning head, easy to operate for a long time.

3) Save Energy, protect the environment, no secondary waste.

4) Non-contact cleaning, no damage on matrix material after cleaning.

5) Off-line operation, no need computer and any edition for the file.

6) Cleaning width can be adjustable from 10-100mm easily.

7) No consumption, almost free maintenance.

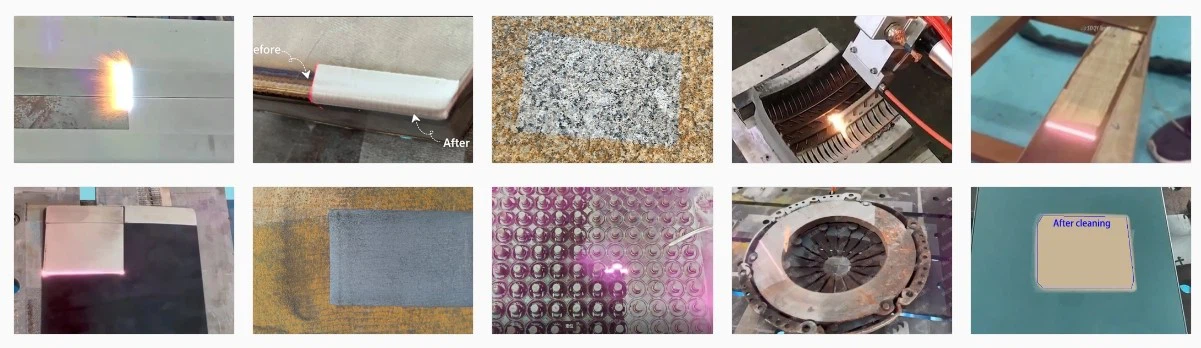

Application

1. Removal of the coat layer on the surface of metal or glass, and quick paint removal.
2. Quick removal of rust and various oxides.
3. Removal of grease, resin, gum, dust, stains and production residues.
4. Surface roughening of metal and glass.
5. Removal of paint, rust, oil stains, oxides and residues produced by welding before welding or adhesion.
6. Removal of oil stains of precision parts after production and processing.
7. Quick cleaning for maintenance of nuclear power parts.
8. Oxide treatment, paint removal and rust removal during the production or maintenance of aeronautic and astronautic weapons and vessels.
9. Metal surface cleaning in small space.
10. Cultural relic cleaning, rock cleaning, building exterior surface cleaning, steel structure anti-corrosion engineering.
11. Mold cleaning, such as tire mold, electronic mold and fold mold.

Company Profile

Shandong Qiangyuan Laser of SDIIT Ltd. (SDQY Laser) founded by Laser Institute of Shandong Academy of Science since 1978. A leading enterprise focusing on the R&D, manufacturing, sales and service of laser cleaning, welding, cutting, cladding machines and solutions.

Our products has exported to European, American, Middle Eastern, Australian, African countries and regions, we provided customers with high quality laser solutions. The professional quality and service in the laser industry market have establish a good brand image and reputation.
