High quality laser cleaning solution service for the world.
The air-cooled continuous laser cleaning machine can achieve efficient cleaning, non-destructive processing, energy saving and environmental protection. Compared with traditional cleaning methods, the air-cooled continuous laser cleaning machine can quickly remove various impurities and dirt attached to the surface of the object without damaging the surface of the object to be cleaned. Moreover, no secondary pollution and waste will be produced during the cleaning process, making it a very environmentally friendly cleaning method.
Specification
|
Model |
QYCL-FC800 |
QYCL-FC1200 |
QYCL-FC1500 |
QYCL-FC2000 |
|
|
Power (W) |
800 |
1200 |
1500 |
2000 |
|
|
Rated power consumption (kW) |
2.7 |
4 |
4.5 |
4.5 |
|
|
Power adjustment range (%) |
10-100 |
||||
|
Scan width (mm) |
10-150/10-300 |
||||
|
Focal length (mm) |
400/800 |
||||
|
Operating mode |
Continuous wave |
||||
|
Central wavelength (nm) |
1070~1090 |
||||
|
Cooling method |
Air Cooling |
||||
|
Fiber length (m) |
10m |
10m |
|||
|
Output method |
Standard QBH |
||||
|
Auxiliary gas |
Dry compressed air or inert gas after filtration. |
||||
|
Machine size (mm) |
665*300*590 |
||||
|
N.W (kg) |
60 |
||||
|
Power supply voltage (V) |
220 |
||||
|
Place environment |
1.Ambient humidity 10 % ~ 85 % RH, no condensation. |
||||
|
Working environment |
Noise, ventilation, dust and other influencing factors. |
||||

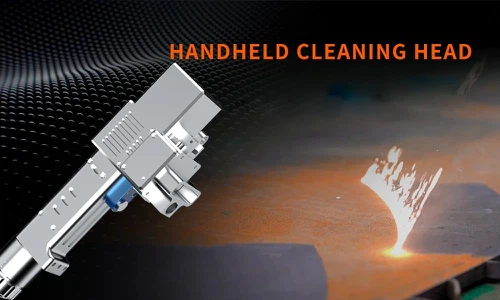

Cleaning Head
|
|
|
||||||||||||||||||||||||
Machine Features
|
|
01 High Precision and Control Laser beam focus is meticulously controlled, enabling the targeted removal of contaminants from specific areas while leaving surrounding regions unaffected. |
|
02 Non-Contact Cleaning Laser cleaning operates without physical contact, preventing wear and tear during the cleaning process. This feature is especially advantageous for maintaining high precision on the object's surface. |
|
|
|
03 Energy-Efficiency and Environmental Friendliness Laser beam focus is meticulously controlled,enabling the targeted removal of contaminants from specific areas while leaving surrounding regions unaffected. |
|
04 Versatility Across Materials Laser cleaning applications span various materials, showcasing remarkable adaptability. |
|

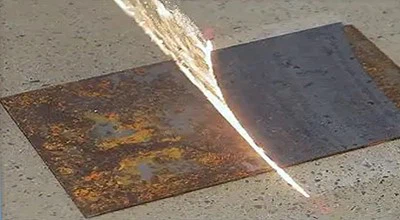

Machine Advantages
|
|
|
|
|
|
|
|
|
|

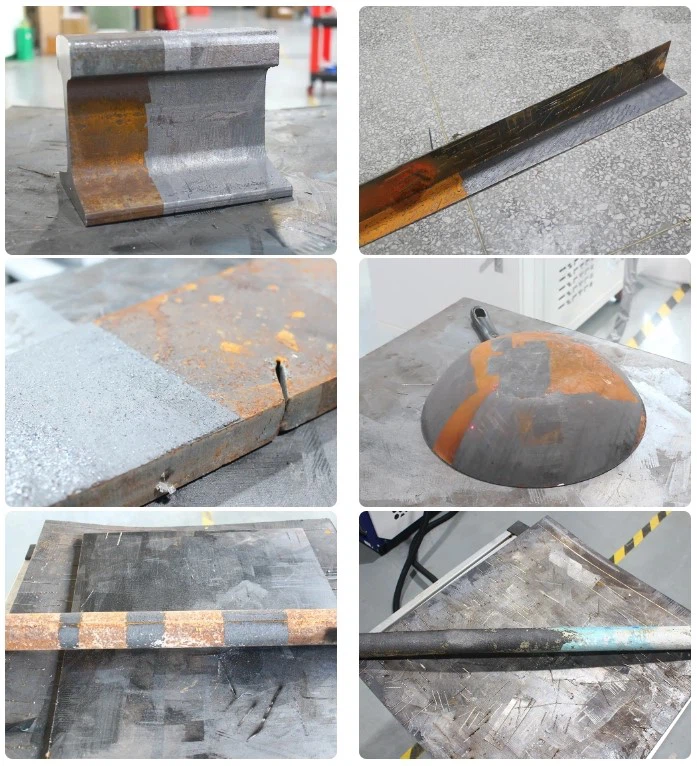

Application
Company Profile
Shandong Qiangyuan Laser of SDIIT Ltd. (SDQY Laser) founded by Laser Institute of Shandong Academy of Science since 1978. A leading enterprise focusing on the R&D, manufacturing, sales and service of laser cleaning, welding, cutting, cladding machines and solutions.
Our products has exported to European, American, Middle Eastern, Australian, African countries and regions, we provided customers with high quality laser solutions. The professional quality and service in the laser industry market have establish a good brand image and reputation.
