High quality laser cleaning solution service for the world.

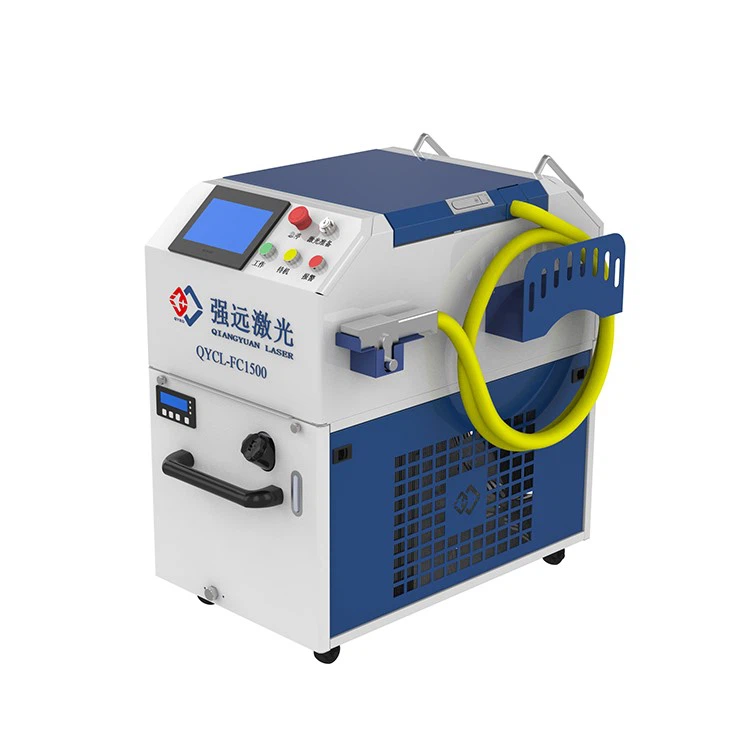

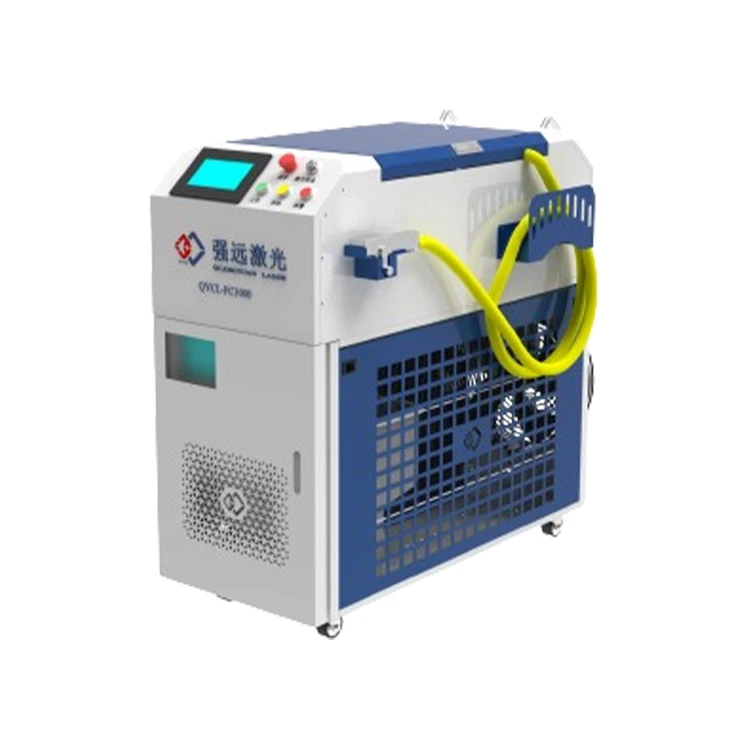

CW Fiber Laser Cleaning Machine 1000w 1500w 2000w 3000w

Products Description

Continuous wave laser cleaning machine is a new generation of surface cleaning and high-tech products. It is easy to install,operate and automate. When the machine is powered on and turned on, you do not need to add any chemicals, dust, water, or media to clean it. This handheld laser rust removal machine can not only remove surface resin, stains, grease, dirt, coating, etc., but also auto focus.

Adopt famous brand core components, safe, stable and reliable. Equipped with self-developed intelligent control system and visual control panel. Ergonomic design hand-held cleaning head, easier to operate and durable. It can be used for high-intensity and complex environmental cleaning in rail, Marine ships, construction machinery and other fields.

Specification

Model	QYCL-FC1000	QYCL-FC1500	QYCL-FC2000	QYCL-FC3000
Average laser power (w)	1000	1500	2000	3000
Weight of hand-held head(kg)	1.5
Rated power(kw)	5	6.6	9.6	12.6
Power adjustment range(%)	10-100
Width of scanning(mm)	10-150/10-300
Focal length(mm)	400/800
Central wavelength(nm)	1070~1090
Cooling method	Water Cooling
Fiber length(m)	10m (Optional 15 m)			20m
Type of laser source	Continuous Wave
Dimension of machine (mm)	917490750		1110490750	12405101040
Weight of machine(kg)	126		144	220
Power supply	220V			380V

Details

	High-quality core components MAX/Raycus/JPT/IPG laser, famous brand, customized Schneider / Omron / Chint First-class electrical brand, safe, stable and reliable.

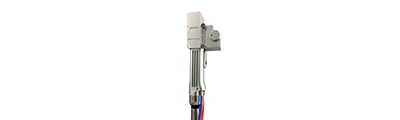

Hand-held cleaning head Ergonomic design, small size and light weight, professional water and air circuit design, built-in temperature sensor protect the optical lens, easy to maintenance and with low cost of use.

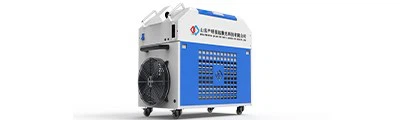

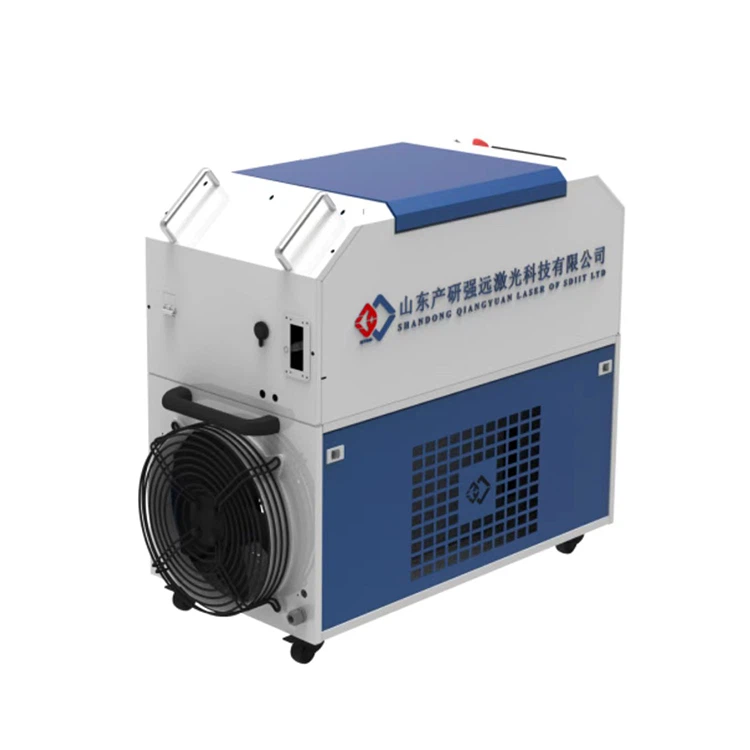

	Professional mechanical structure design Adopt 360°silent universal wheel and integrated embedded water chiller design, smaller, easier to move. Rear air duct & air intake grilles on both sides, more efficient heat dissipation with longer service life.

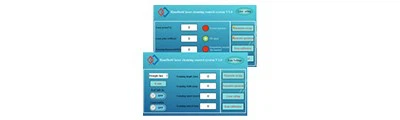

Open functional design Visual multi-language touch control screen, equipped with a variety of industrial bus communication protocol interface to real-time monitoring of the control system status, help users quickly locate and solve problems.
