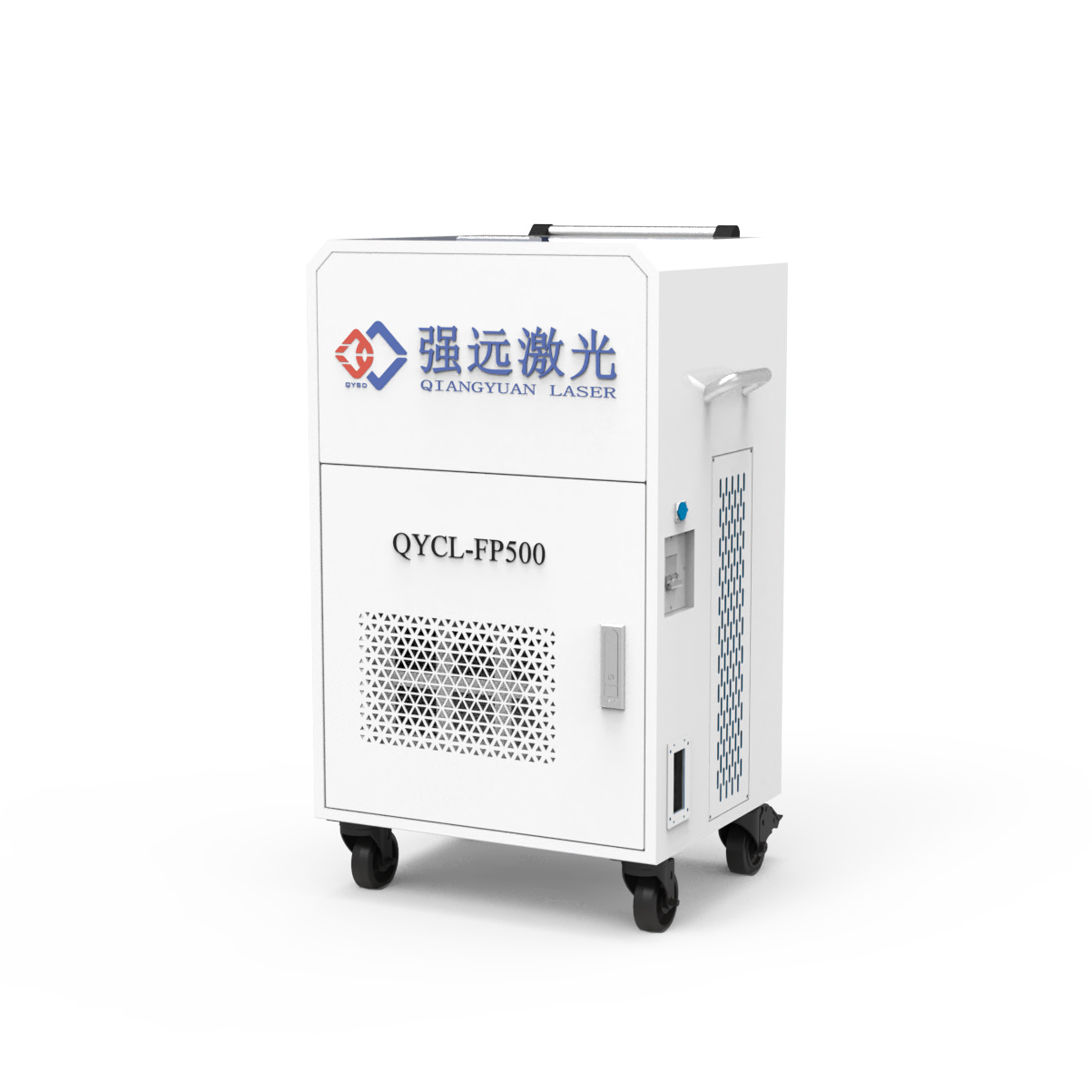

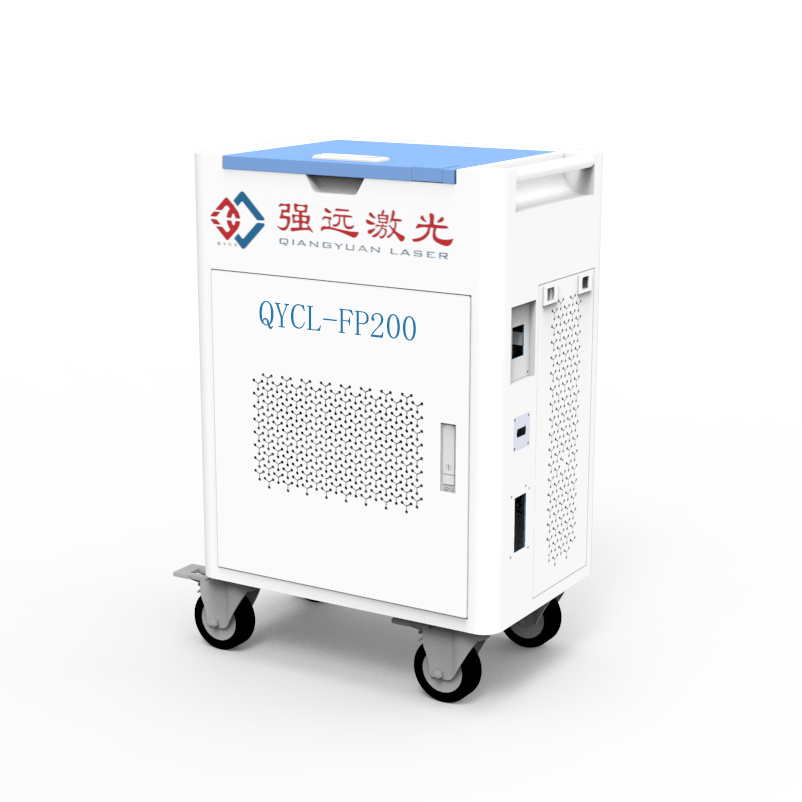

Top-hat Pulse Laser Cleaning Machine (Air Cooled)

Products Description

This machine uses a pulsed fiber laser and is equipped with a self-developed intelligent control system. The laser pulse frequency and width are adjustable, red light assists in focusing, and the focus position can be adjusted according to different scenarios. Through the adjustment of laser parameters, a constant high peak power output can be achieved, which is suitable for a variety of cleaning scenarios.

Products Details

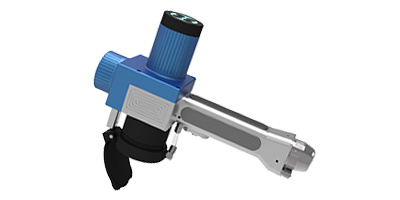

01. Hand-held Cleaning Head

The T-shaped body has a built-in dynamic air curtain, which makes opening and unlocking the cover safer, removes dust, and prevents accidental touches; the knob can adjust parameters in real time, and the chamber temperature is displayed on the screen for early warning; the dual red light precision focusing system is suitable for cleaning curved surfaces/special-shaped parts.

02. Open Function Design

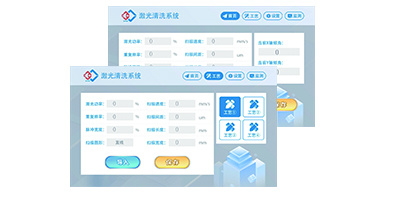

Visual multi-language touch screen, 8 cleaning graphics as standard, supports multiple industrial bus communication protocols, and has power-off parameter saving and laser alarm functions

03. High-quality Core Components

MAX/Raycus/JPT/IPG laser, famous brand, customized Schneider / Omron / Chint First-class electrical brand, safe, stable and reliable.

04. Push-pull Portable Structure

The integrated handles on both sides are strong and space-saving. The 360° silent universal wheels make it easy to move.

Products Parameter

Model	QYCL-FP200C	QYCL-FP300C	QYCL-FP500C
Average laser power (w)	200	300	500
Single pulse energy (mj)	5	15	15/50
Rated power (kw)	1	1.5	2.9
Power adjustment range (%)	10-100
Width of scanning (mm)	0~100
Focal length (mm)	100/160/254/330/420
Central wavelength (nm)	1060-1070
Cooling method	Air Cooling
Fiber length (m)	5m		10m
Type of laser source	Pulsed fiber laser
Power supply (v)	220V

Products Features

1. Integrated compact design
The whole machine integrates laser, cleaning head and control system, with small size and light weight, which is easy to move and operate on site.

2. Air cooling system
Air cooling is used instead of traditional water cooling, eliminating the need for chiller maintenance.

3. Top-hat beam technology
The beam energy is distributed in a "flat-top" manner, acting evenly on the cleaning surface to avoid damage to the substrate caused by excessive central energy of the Gaussian beam, which is particularly suitable for fine cleaning.

4. Zero pollution operation
Non-contact physical cleaning does not produce wastewater, waste residue or chemical residue, and meets green manufacturing standards.
