QY-FKLDC-A Laser Welding Series Lithium Battery Tab Laser Welding Machine

Applied to Lithium Battery Series Parallel Welding

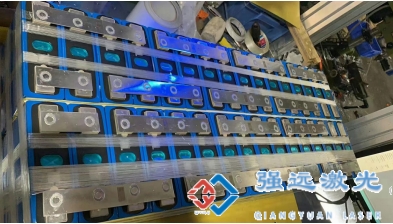

1. Square aluminum shell battery welding

2. Cylindrical power battery welding

3. Soft pack power battery welding

Main Features

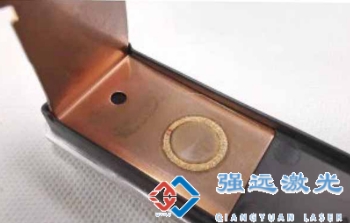

1. Stability: Laser welding is fine and does not damage the battery.

2. Material process characteristics: It can achieve copper, aluminum and even copper and aluminum mixed, and the welding is firm.

3. Welding speed: Automated assembly line operation, hundreds of points can be welded in one minute, at least 2 times faster than manual.

4. Welding quality: The welding point is strong, the conductivity is good, and the battery life is longer.

5. Intelligent anti-fool: It comes with "eyes" (camera) and "brain" (sensor), and the focus is automatically adjusted.

6. Safety and environmental protection: No smoke, the workshop is clean and safe and energy-saving.

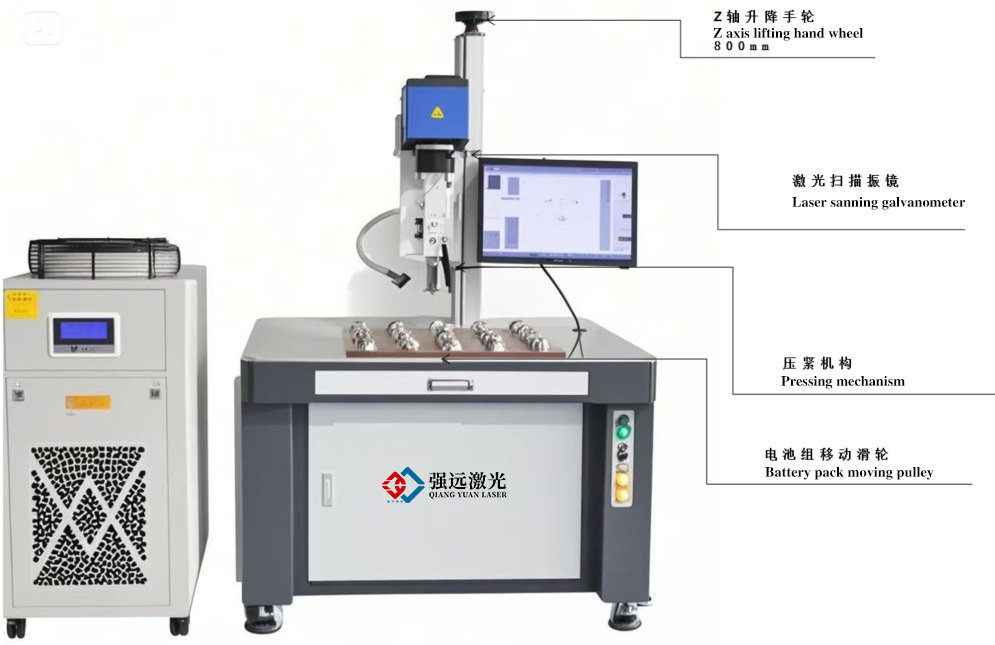

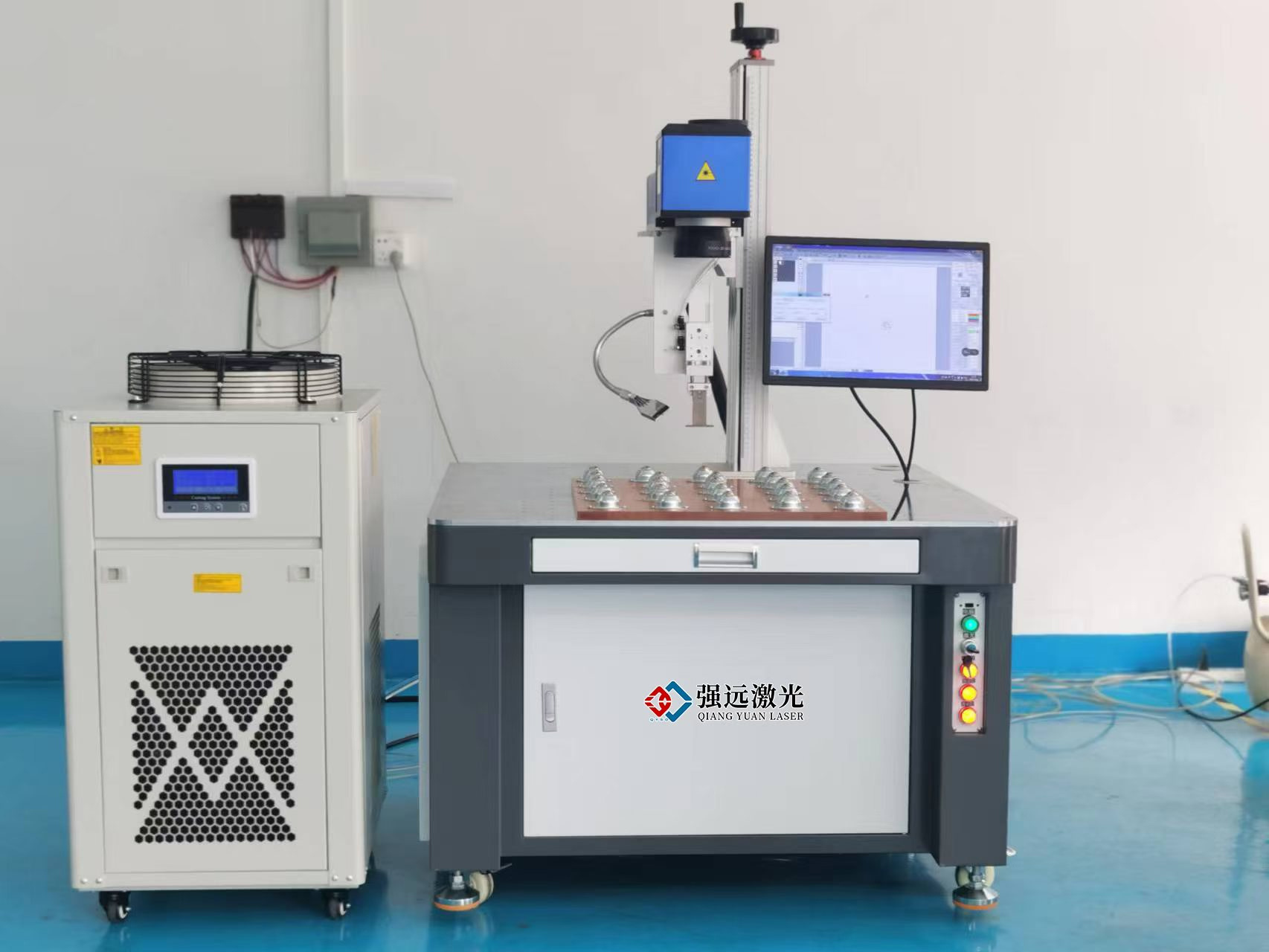

Device Structure Diagram

List of Major Device Configurations

Sequence	Name	Model	Brand
1	Laser	3000W	BWT Laser
2	High power laser galvanometer welding head	With water cooling cycle, wind knife	Lz laser
3	Laser welding control system	QY-V6.0	QIANGYUAN Laser
4	Welding the main cabinet (Sheet metal)	110010001500mm(Length, width and height)	Custom
5	Laser water cooler	BY-3000W	ce overpass
6	Industrial computer	Custom	Custom
7	Display	19 Inch widescreen screen	Custom
8	Lower the cylinder	Slide cylinder	Airtac

Equipment Parameter

Equipment type	QY-CW-3000W
Laser wavelength	1070-1090nm
Welding spot	0.2-3.5mm
Laser Output Power (W)	3000W
Power Stability (1h)	±1%-±1.5%
Power regulation range	10%-100%
(BPP)Beam quality (BPP)	1.1-1.5mm×mard
Modulation frequency (100% output)	5KHz
Output mode	QBH
Welding speed	50-60mm/s
Recommended welding thickness (maximum) mm	Aluminum2.0, Copper1.0, Nicke1.0
Positioning mode	Red light
Indicated red light power	200μW
Output fiber core diameter	50μm
Optical fiber cable length	20m
Fiber bending radius	200mm
Cooling mode	water-cooling
Main cabinet dimensions (L W H)	175013001980mm
Chiller size	1000×800×1200mm
Operating voltage	360-410VAC
Machine power (maximum)	≦15KW
Machine weight	≈300KG
