Air Cooling Laser Welding Machine 1000w 1200w 1500w 2000w

Products Description

Handheld laser welding is easy to learn, simple and fast to set up and provides consistent high-quality results across a wide range of materials and thicknesses. Anyone can learn to weld with professional results in 5-30mins. Compare this to years of training with a traditional Mig/Tig welder. With almost no flash, no need for heavy duty protective clothing to like traditional welding.

Products Specification

Model	QYWL-FC800	QYWL-FC1200	QYWL-FC1500	QYWL-FC2000
Power (W)	800	1200	1500	2000
Rated power consumption (kW)	2.7	4	4.5	5.5
Power adjustment range (%)	10-100
Scan width (mm)	10-150/10-300
Focal length (mm)	400/800
Operating mode	Continuous wave
Central wavelength (nm)	1070~1090
Cooling method	Air Cooling
Fiber length (m)	10m			10m
Output method	Standard QBH
Auxiliary gas	Dry compressed air or inert gas after filtration.
Machine size (mm)	665300590
N.W (kg)	60
Power supply voltage (V)	220
Place environment	1.Ambient humidity 10 % ~ 85 % RH, no condensation. 2.There is no explosive and corrosive gas in the place where the equipment is installed. Environmental temperature 10 °C ~ 40 °C.
Working environment	Noise, ventilation, dust and other influencing factors.

Machine Features

	01.High Precision and Control: Laser beam focus is meticulously controlled, enabling the targeted removal of contaminants from specific areas while leaving surrounding regions unaffected.

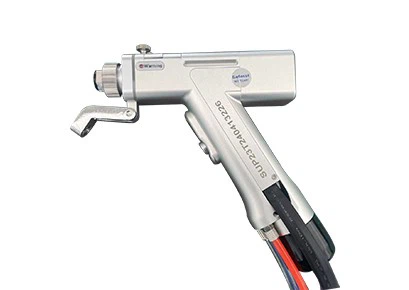

02.Handheld laser welding head: Equipped with dedicated welding nozzles suitable for a variety of processing scenarios meet different customer needs.

Machine Advantage

Easy: Learn to weld like a pro in 5-30 mins - if you can use a hot glue gun you can use a laser welder!
Low heat means less part deformation.
Faster High speed welding - laser welding can draw beads as fast as you can pull a straight line.
Need only very lightweight gloves or no gloves at all (not recommended) as part is not hot.
Can perform one sided spot welding (laser riveting), replace drilling holes, tapping, screws with one operation even with no access to back side.
Can do bead welds with wire feeder.
Very low flash/brightness, minimal protection needed.

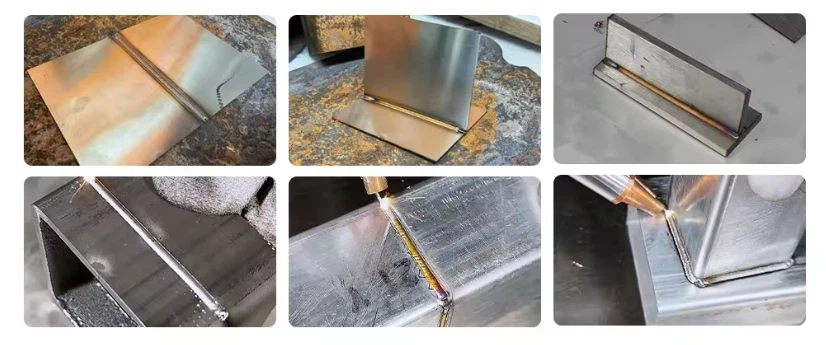

Can weld aluminum, copper, steel, stainless, titanium and more.
Much lower power draw.

Application

Company Profile

Shandong Qiangyuan Laser of SDIIT Ltd. (SDQY Laser) founded by Laser Institute of Shandong Academy of Science since 1978. A leading enterprise focusing on the R&D, manufacturing, sales and service of laser cleaning, welding, cutting, cladding machines and solutions.

Our products has exported to European, American, Middle Eastern, Australian, African countries and regions, we provided customers with high quality laser solutions. The professional quality and service in the laser industry market have establish a good brand image and reputation.
