Products Description
Our new model handheld fiber laser welding machine is state of the art new technology.
It's equipped with a new single Scanning technology allowing multiple types of welds from our new super light weight hand gun. The machines are used and sold extensively in fabrication industries and uses our unique soft start system for stable Aluminum welding with wire.
It has the advantages of simple operation, stable operating, perfect welding beam and and high welding speed. Welding in thin aluminum, stainless steel sheet, iron sheet, galvanized sheet and other metal materials can perfectly replace the traditional argon arc welding, Tig and Mig welding processes.
Specification
|
Model |
QYWL-FC2000 |
|
|
Hand-held head |
Single pendulum welding head (optional wire filling device) |
|
|
Weight of hand-held head (kg) |
1.73 |
|
|
Laser power (w) |
2000 |
|
|
Rated power (kw) |
9.6 |
|
|
Power adjustment range (%) |
10-100 |
|
|
Central wavelength (nm) |
1060-1070 |
|
|
Cooling method |
Water Cooling |
|
|
Fiber length (m) |
10 (Optional 5/15) |
|
|
Type of laser source |
Continuous wave |
|
| Dimension of machine (mm) |
1110*490*750 |
|
| Weight of machine (kg) |
145 |
|
|
Power supply |
220V |
|
Machine Details
|
|
1. High-quality core components Raycus/MAX/JPT/IPG laser, famous brand, customized options. Schneider/Omron/Chint famous electrical brand, safe, stable and reliable. |
|

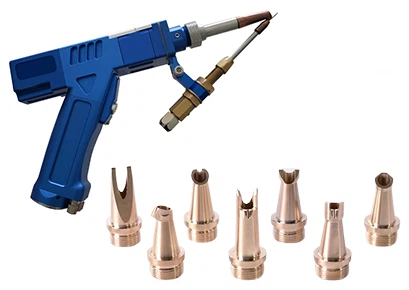

2. Portable welding head Light weight with portable and flexible torch structure design, suitable for welding operation habits, stable and reliable. Handheld and automatic machine dual-purpose, suitable for welding operations in high-strength and complex environments. |
|
|
|

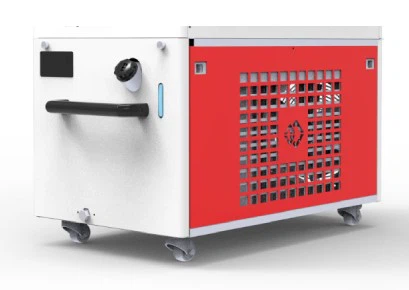

3. Universal wheel movable structure Equipped with universal wheels, flexible movement, with good inlet and outlet air design of the shell ensures the overall heat dissipation and provides reliable welding guarantee for complex working conditions. |
|

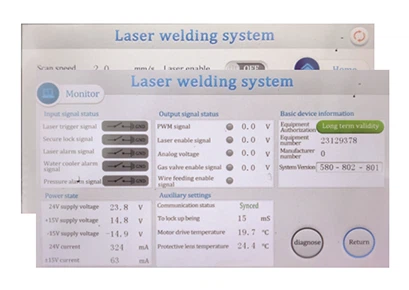

4. Open functional design Fast power plug suitable for more working conditions. Visual control panel, one-key operation with multi-language interface. |
|
Features
1. Humanized operation interface, simple intuitive operation, easy to understand and powerful.
2.The beam quality is good, the electro-optical conversion efficiency of the fiber laser is high, up to 40%, and the energy consumption is very low.
3. The whole machine has stable performance and long life, basically achieving maintenance free.
4.High aspect ratio, small weld width, small heat affected zone, small deformation and fast welding speed.

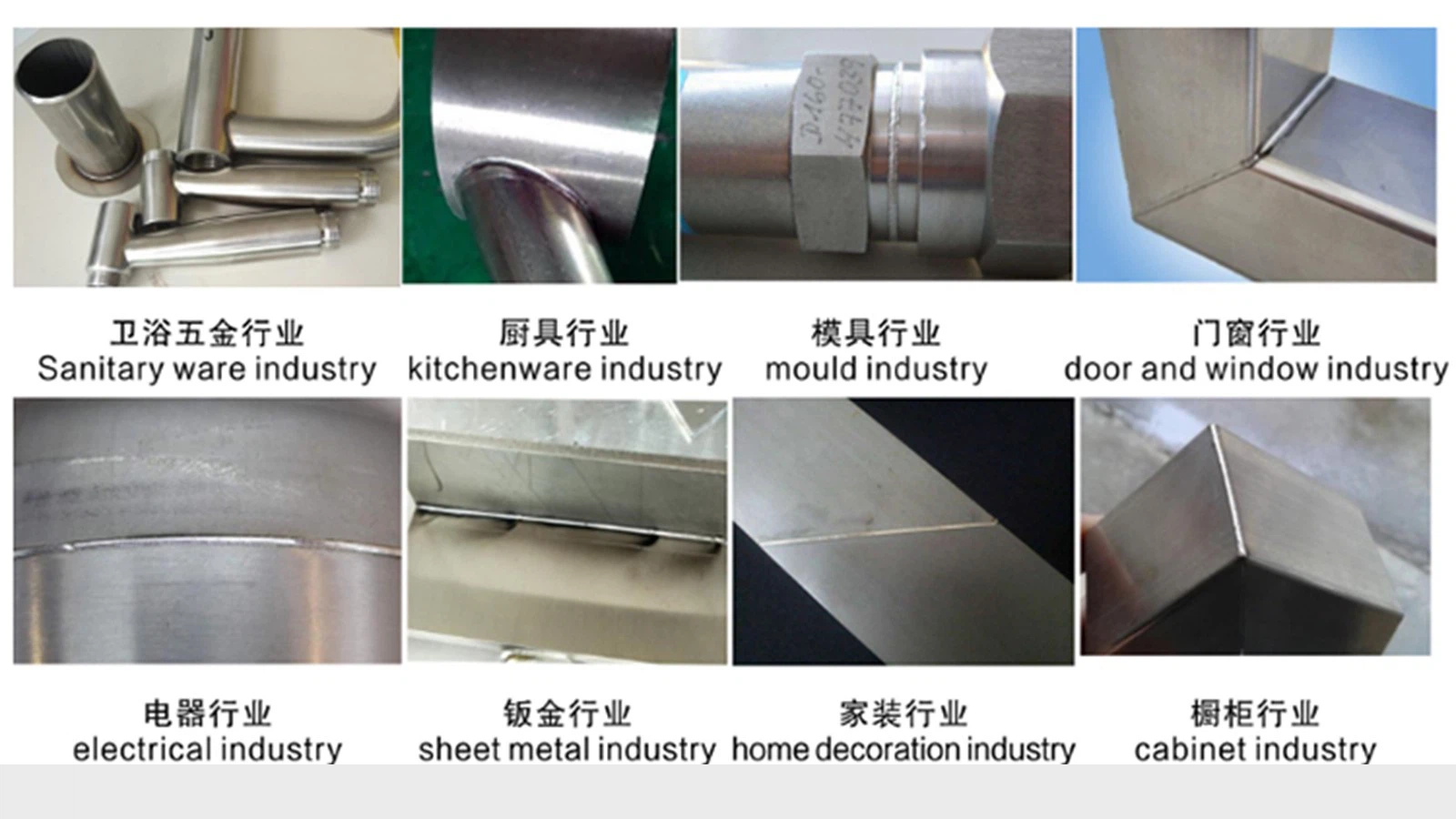

Application
Company Profile
Shandong Qiangyuan Laser of SDIIT Ltd. (SDQY Laser) founded by Laser Institute of Shandong Academy of Science since 1978. A leading enterprise focusing on the R&D, manufacturing, sales and service of laser cleaning, welding, cutting, cladding machines and solutions.
Our products has exported to European, American, Middle Eastern, Australian, African countries and regions, we provided customers with high quality laser solutions. The professional quality and service in the laser industry market have establish a good brand image and reputation.
