Product Description
SDQY laser's 500w gaussian beam pulse laser cleaning machine uses a max brand laser source with pulse energy of 2mJ, which produces a laser beam with a soft light output and causes no damage to the surface of the delicate material after cleaning.
It is suitable for various applications, including manufacturing, aerospace, automotive, marine vessels, medical equipment, mold, etc.
Product Parameters
|
Model |
QYCL-FP500 |
|
Average laser power (w) |
500 |
|
Single pulse energy (mj) |
2 |
|
Weight of hand-held head (kg) |
3.2 |
|
Rated power (kw) |
7.5 |
|
Power adjustment range (%) |
10-100 |
|
Width of scanning (mm) |
100*100 |
|
Focal length (mm) |
100/160/254/300 |
|
Central wavelength (nm) |
|
|
Cooling method |
Water Cooling |
|
Fiber length (m) |
5m |
|
Type of laser source |
Pulsed fiber laser |
|
Dimension of machine (mm) |
1110*490*833 |
|
Weight of machine (kg) |
145 |
|
Power supply |
220V / 110V |
Features
1. Using Max brand pulse laser source and S&A chiller.
2. The self-developed cleaning head is used, with fast scanning speed and high cleaning accuracy, which can meet the long-term operation of high-power laser cleaning and various application requirements of laser cleaning.
3. The self-developed control system is used, and the database system is perfect, which can optimize the process parameters according to the specific situation.
4. The laser cleaning head is equipped with a closed air blowing system, which is energy-saving and environmentally friendly, and is suitable for scenes with high requirements for surface cleaning. This design makes the cleaning more comprehensive, prevents surface damage, and ensures the quality of the workpiece.
Details
|

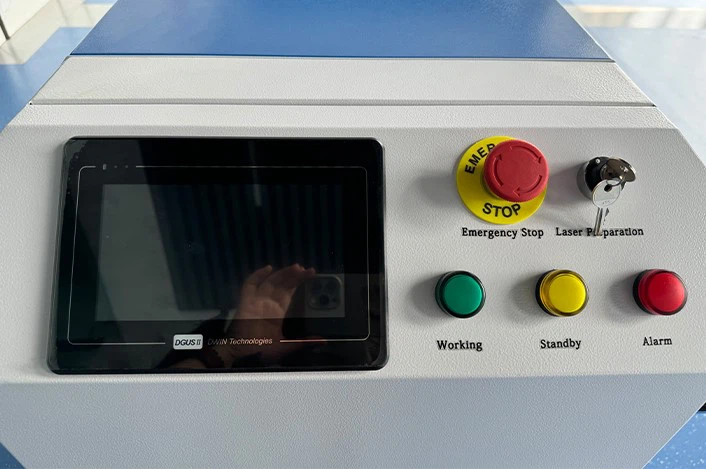

Control Screen and Switch The laser cleaner is equipped with a cleaning control system and application software, and the process parameters can be adjusted. The one-button start switch is easier to operate. The emergency stop knob has a fast response speed, providing safety, reducing losses and injuries, and is an important device to ensure the safety of the laser cleaning process. |
|
|
|

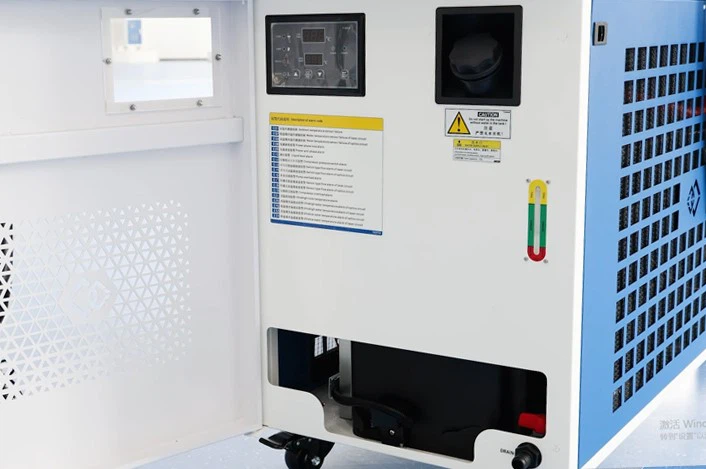

Laser Source and Water Cooler The 500w pulse laser cleaning machine use a MAX laser source, which produces soft and stable light output. By using a water-cooling system to reduce the temperature of laser equipment, it is possible to quickly absorb and release heat. The cooler of this laser cleaner ensures stable temperature control and extends the service life of the laser cleaner. |
|

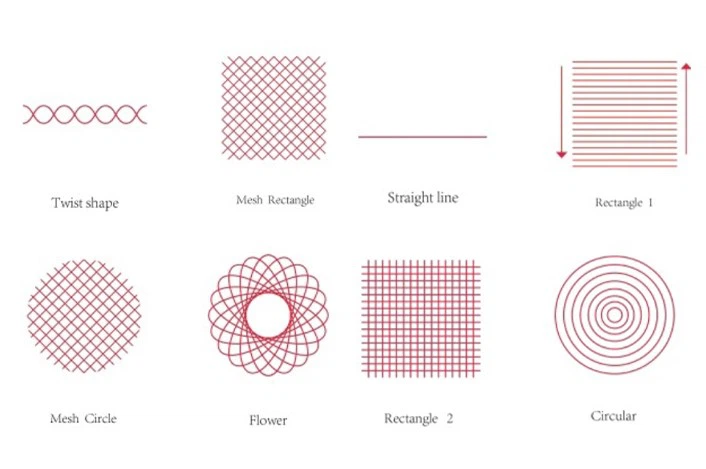

8 Cleaning Modes of Laser leaning Machine You can switch these modes by clicking the "Scan Mode" option on the interface. Some cleaning modes are gentler and suitable for materials with higher surface requirements, which can reduce or eliminate the marks after cleaning. Some cleaning modes are more powerful and are very suitable for removing stubborn dirt or coatings. |
|
FAQ
1: Can I get some tests before I decide which to buy?
Yes, we are able to offer free tests. Actually we suggest to have some tests before you making the purchase decision.
There are several models of laser cleaning machine, normally we will make tests for our customer with different models to choose the most suitable one from our professional suggestion but not the most expensive one. The samples test will be shown by videos and pictures.
2: What is the machine HS CODE?
It is 8456110090.
3: Is the machine very difficult to learn? I am a very new starter in lasers.
Please don't worry, the machine is very easy to operate, even if it is your first laser machine.
(1) We will share the demo software(if there is one), you can try the basic functions in your PC;
(2) All user manuals, the machine, software and other supportive guidance, will be prepared for you in paper or PDF;
(3) Before the machine leaving for you, we will take complete guidance video to show you the basic steps to start the machine;
(4) Following the machine, there will be a flash driver, which includes the teaching videos, data backup, related files;
(5) Open to negotiate the operation skills, no time limited.
4: Do I need to pay special attention on the machine maintainence?
The advantage of the fiber laser is less maintainence and long service time.
