Air Conditioning Pulse Laser Cleaning Machine

Features of the Equipment

Pulse Laser + Self-Developed Control System

Pulsed fiber lasers can provide stable high-power output, high beam quality, precise focusing, can process high-reflectivity materials, and can accurately remove paint, rust, oil and other pollutants from the surface of objects.

The new generation of OYCLH-FPD integrated control system developed independently for laser cleaning is adopted to realize precise control of laser and galvanometer system, interaction of external electrical components and HMI equipment, and the interface is applicable to various mainstream laser brands at home and abroad. It supports one-dimensional galvanometer and two-dimensional galvanometer, and is currently the smallest and most comprehensive continuous-pulse laser cleaning universal composite control system in China.

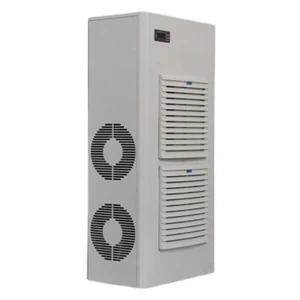

Industrial-Grade Air Conditioning Ensures Stable Operation of Equipment

It has powerful cooling capacity and high stability to meet the high temperature environment requirements of industrial sites, can operate continuously for a long time, and adapt to the needs of industrial production; in a hot and humid environment, its powerful dehumidification function keeps the relative humidity of the industrial environment within an appropriate range and adapts to relatively harsh environments; intelligent control, easy operation and management.

External Teaching Pendant for Easy Control Operation

The external teaching pendant is equipped with an optional 5-meter connecting cable. When the operator is separated from the machine, it is convenient for the operator to set parameters and view data signal feedback remotely.

Automatic Cleaning Head

It can realize precise position and precise size selection cleaning; it is easy to use and can be combined with a robot to achieve automatic cleaning.

Parameters

Model	QYCL-FP100E	QYCL-FP200E	QYCL-FP300E
Average laser power (w)	120~130	200~210	300~320
Single pulse energy (mj)	1.8
Weight of hand-held head (kg)	1
Rated power (kw)	0.8	1.2	1.5
Power adjustment range (%)	10-100
Width of scanning (mm)	100*100
Focal length (mm)	100/160/254/300
Central wavelength (nm)	1060-1070
Cooling method	Air conditioning / Air Cooling
Fiber length (m)	5m (Optional 10 m)
Type of laser source	Pulsed fiber laser
Dimension of machine (mm)	791464680
Weight of machine (kg)	107

Application

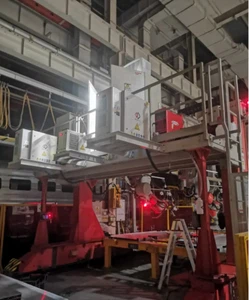

The equipment can accurately remove pollutants such as oil, rust, and paint on the metal surface; it is effectively used to remove residual dirt on the mold surface, and remove pollutants such as moisture, oxide layer, and welding ash on the surface of the workpiece before and after welding. It can complete operations in harsh environments such as hot and humid environments.
