200w 300w 500w 1000w Top Hat Pulse Laser Cleaning Machine

Products Description

Using MOPA pulsed fiber laser, a variety of pulse waveform selection, to meet the cleaning of different materials. The single pulse energy is large, the cleaning efficiency is high, the spot energy distribution is uniform, and the cleaning does not damage the substrate. The chassis structure is easy to integrate and has a large processing range. It can non-destructively remove oil, corrosion, paint and other pollutants on the metal surface, which is green environmental protection pollution-free.

Products Specification

Model	QYCL-FP200A	QYCL-FP300A	QYCL-FP500A	QYCL-FP1000A-15	QYCL-FP1000A-50
Average laser power (w)	200~220	300~320	500~520	1000	1000
Single pulse energy (mj)	13		50	15	50
Weight of hand-held head (kg)	1.5
Rated power (kw)	4.5	5.6	7.5	10
Power adjustment range (%)	10-100
Width of scanning (mm)	10-100
Focal length (mm)	100/160/254/330/420
Central wavelength (nm)	1060~1070
Cooling method	Water Cooling
Fiber length (m)	5m (Optional 10m)		5m	10m
Type of laser source	Pulsed fiber laser
Dimension of machine (mm)	841490772		12405101040
Weight of machine (kg)	144		205
Package size (mm)	1200560950		13606001405
Package weight (kg)	205		267
Power supply	220V		380V

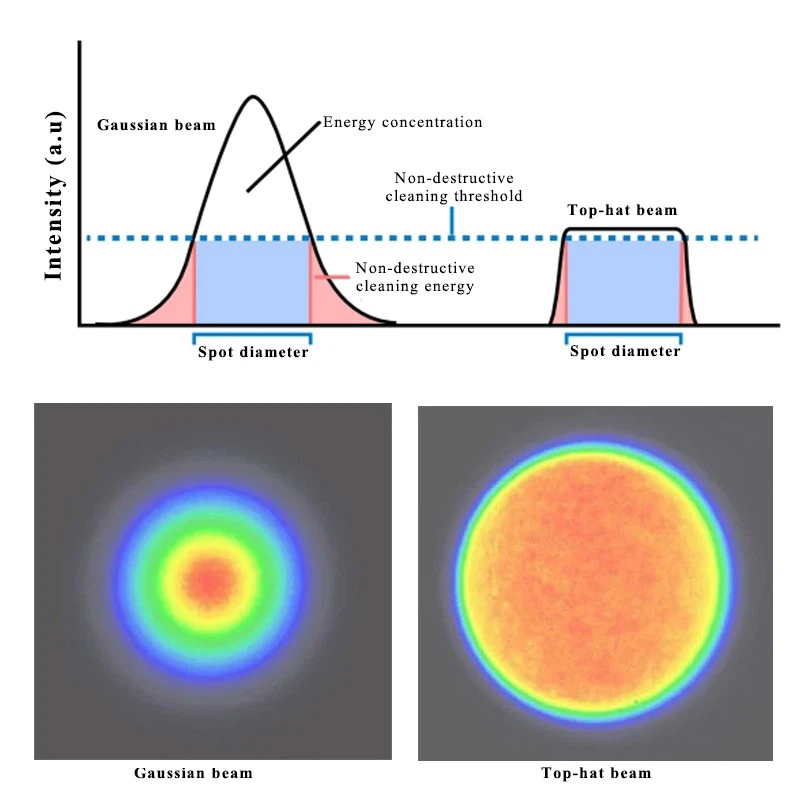

Top-hat beam VS. Gaussian beam

Gaussian Beam:

-Gaussian beam has a typical Gaussian power distribution, that is, the center brightness is high and the edge brightness is low.

-Gaussian beam can form a relatively small light spot on the surface of the object, so it can provide high beam focus and energy density, thereby improving the cleaning effect.

Top-hat / Flat-top:

-Top-hat beams have a more uniform power distribution, that is, the power is evenly distributed throughout the entire spot area. It can form a uniform light spot on the surface of the object, so it can cover a larger cleaning area and have a faster cleaning speed.

- Top-hat laser cleaning machine is suitable for some scenarios that require high cleaning speed.

Features

• Fine cleaning, no damage to the substrate, higher cleaning effciency.
• Support 8 cleaning modes, applicable to complex scenes, 5/10m cable.
• Double wobble smart cleaning head, easy to operate and good stability.
• All-in-one chassis, internal modual design for easy maintenance, add storage function to protect cables and cleaning head.
• Passes multiple rigorous tests in the industry, reliable quality, stable and durable, such as high temperature test, vibration test, high humidity test, anti-interference test, fatigue test, brend resistance test and so on.
• High repetition frequency, high beam quality, high energy density.

FAQ

1: What Types Of Products Do You Have?
We mainly sell four types of laser products: laser cleaning machine, laser welding machine, laser cladding machine, and laser cutting machine.

2: How Do I Choose The Most Suitable Machine For Me?
- You can tell us your specific needs: industry, materials, photos, etc. - Do you have a purchase budget? Do you need pre-sales proofing test? We will recommend the most suitable products to you according to your budget and clear requirements.

3: This Is My First Time To Buy This Kind Of Machine. Is It Easy To Use?
The operation is very simple. Most of our customers mastered the use skills within one single hour. We will send you the english version(language is customizing) of user manual and operation guiding video, as well as we can train you through remote online video chatting.

4: How Do You Guarantee The Quality Of The Goods?
Each equipment of us shall experience a strict quality inspection and long-time continuously running test(72 hours) before shipping out. We provide inspection videos or photos for customer to confirm the cleaning/welding/cladding/cutting effects and performance of our machine. Quality certificate and warranty card will be sent along with the package.
